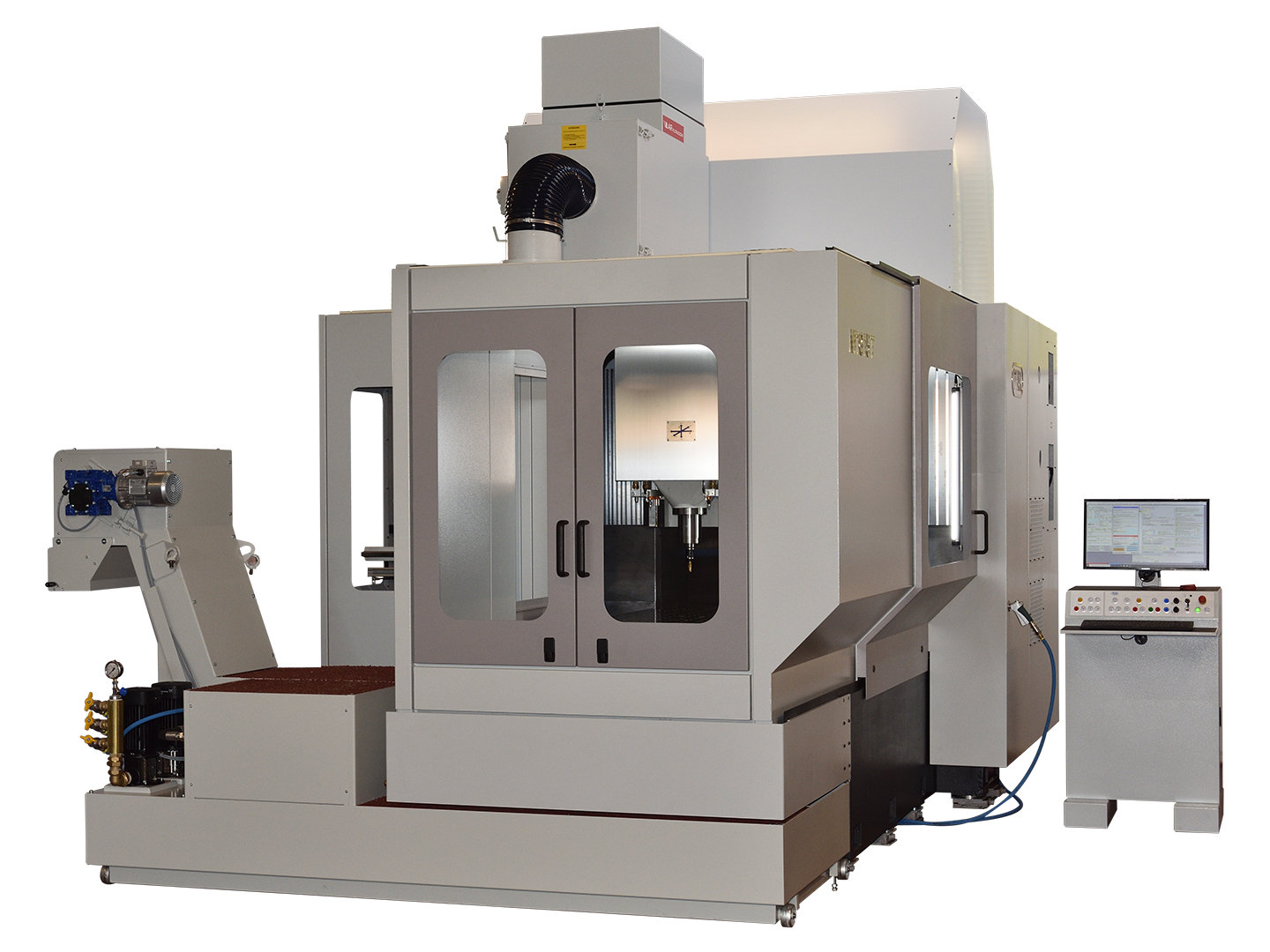

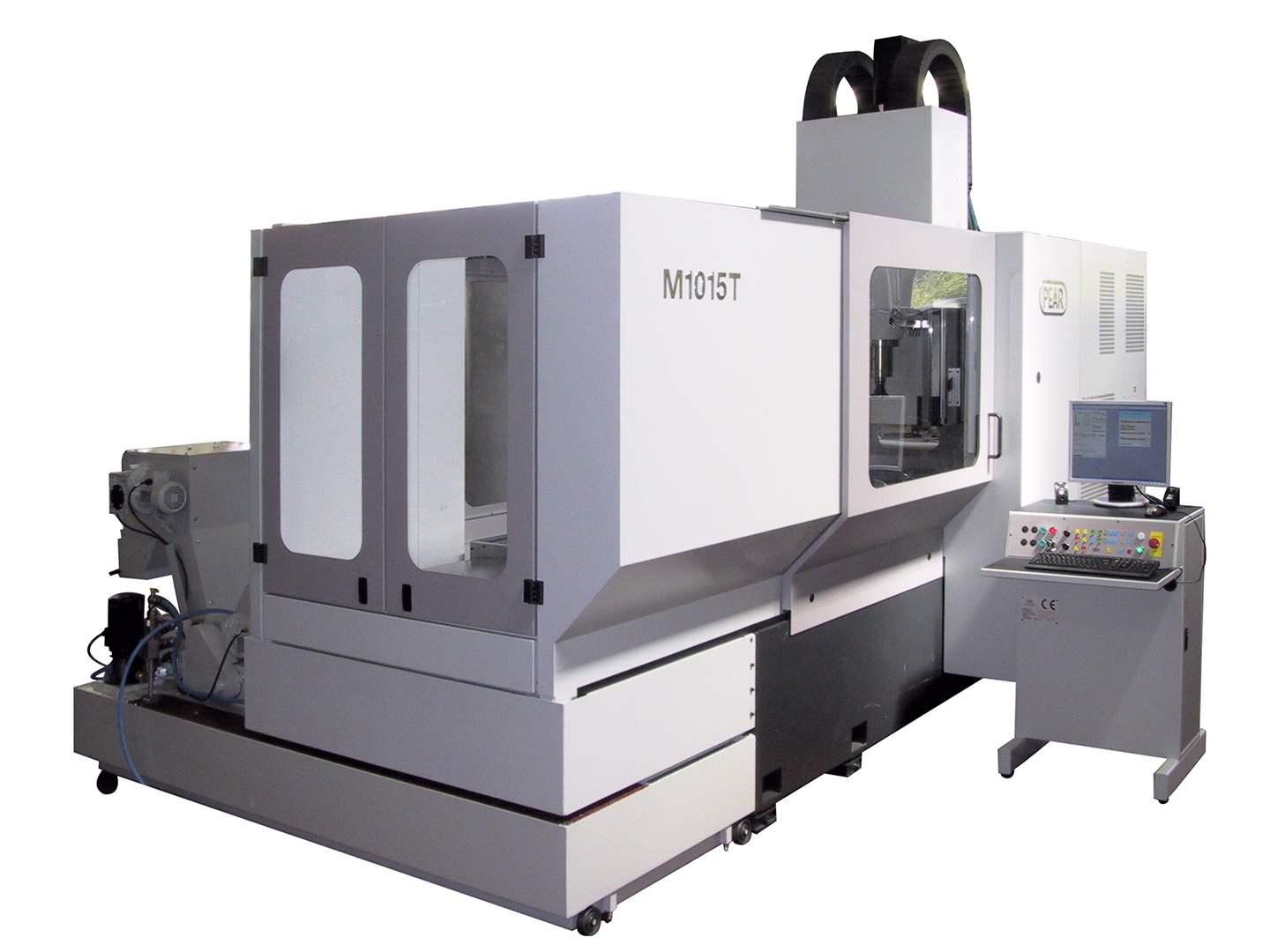

M1015T

FIELDS OF APPLICATION

Si tratta di un centro di lavoro a tre assi avente le seguenti caratteristiche principali:

Read more

Last Updated on 14 March 2023 by Pear

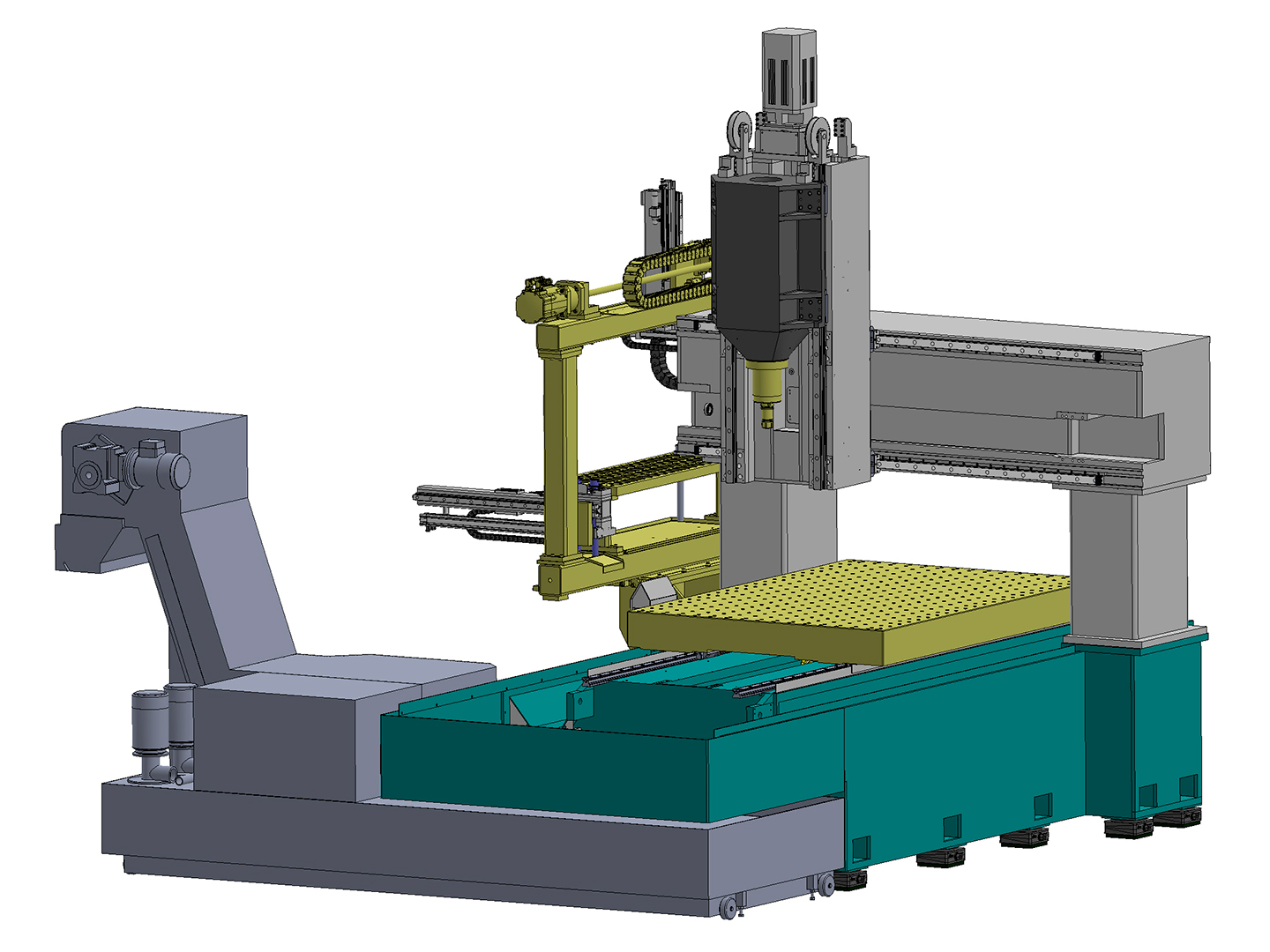

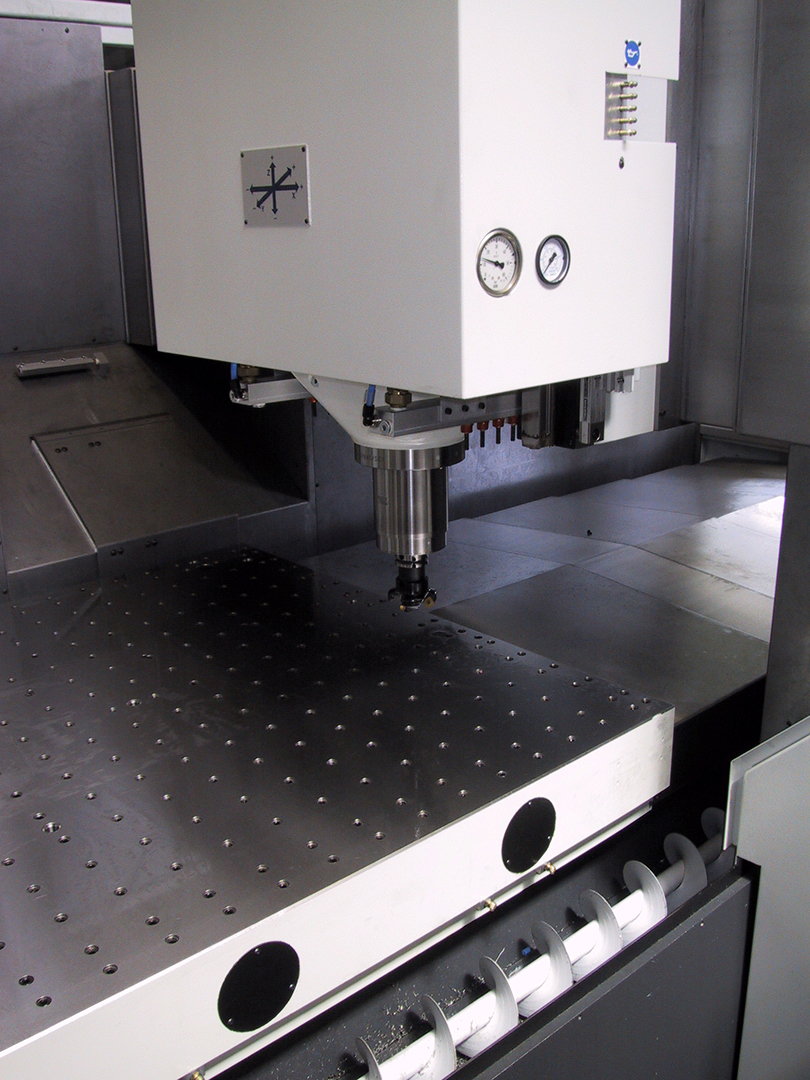

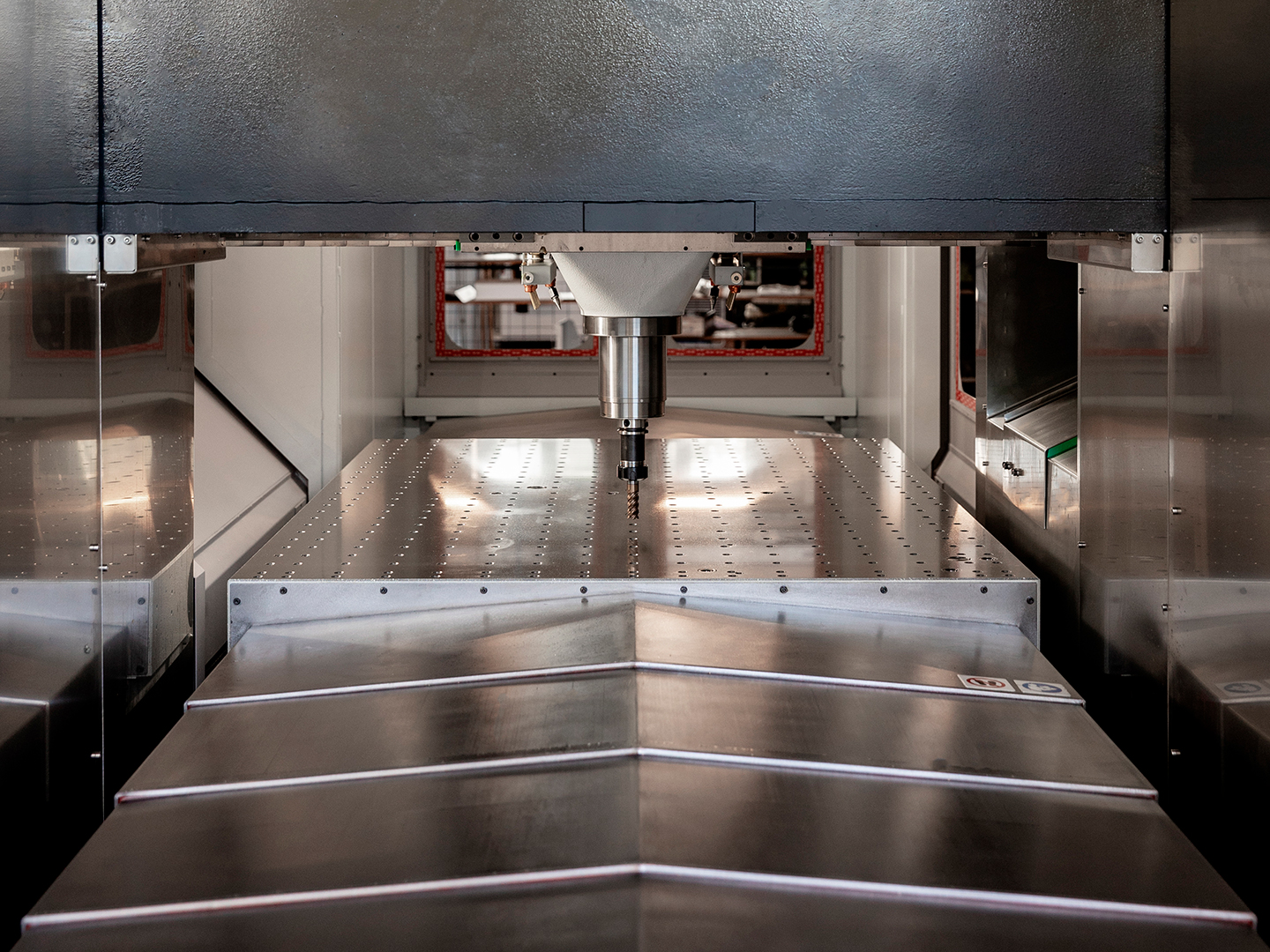

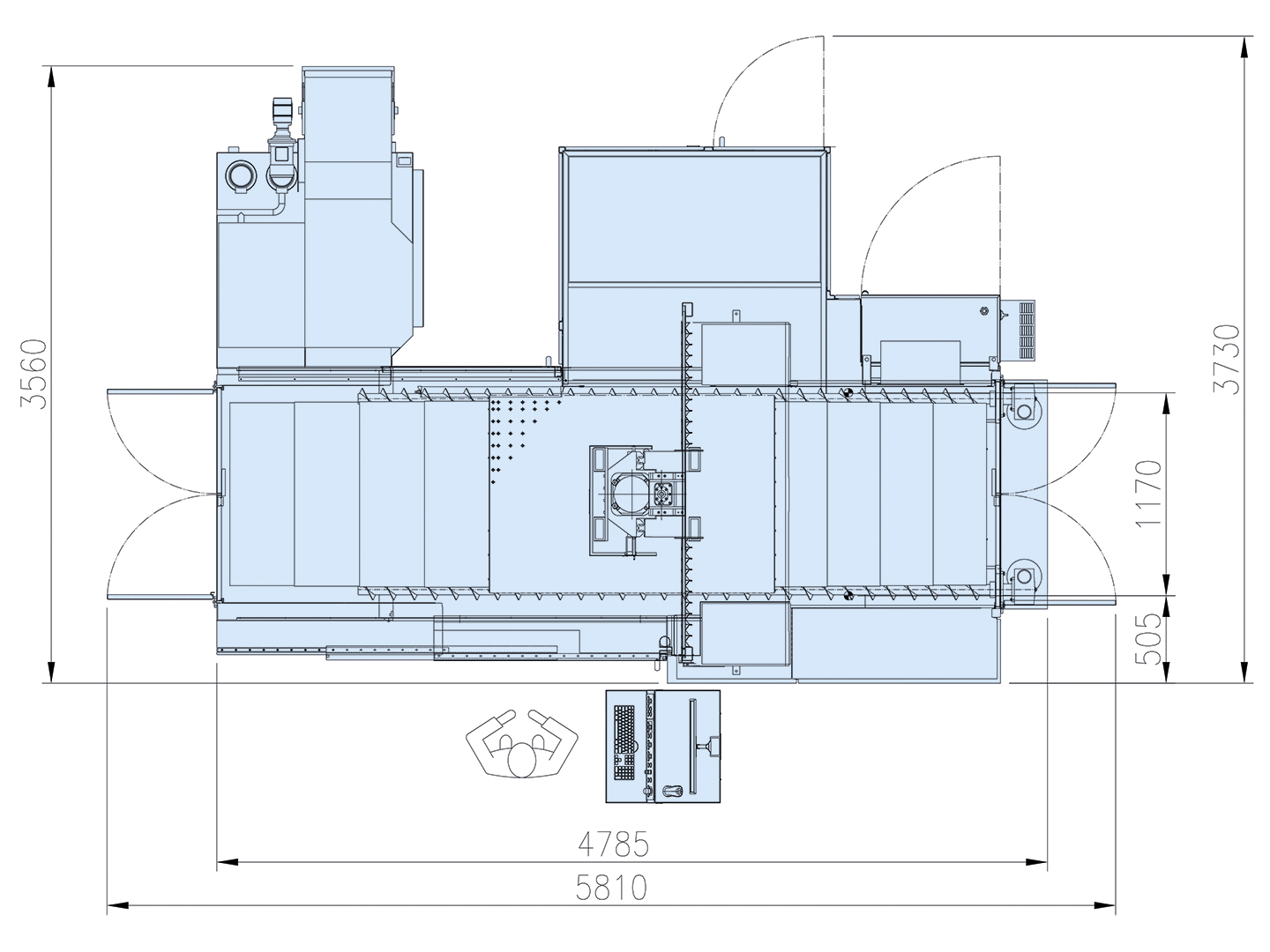

STRUCTURE

Follows the scheme now become classic, we introduced in 1983 in the construction of machining centers, of a portal structure in which the movement of the axes X and Z are on the spindle while the Y axis is on the working plane.

Read more

Last Updated on 14 March 2023 by Pear

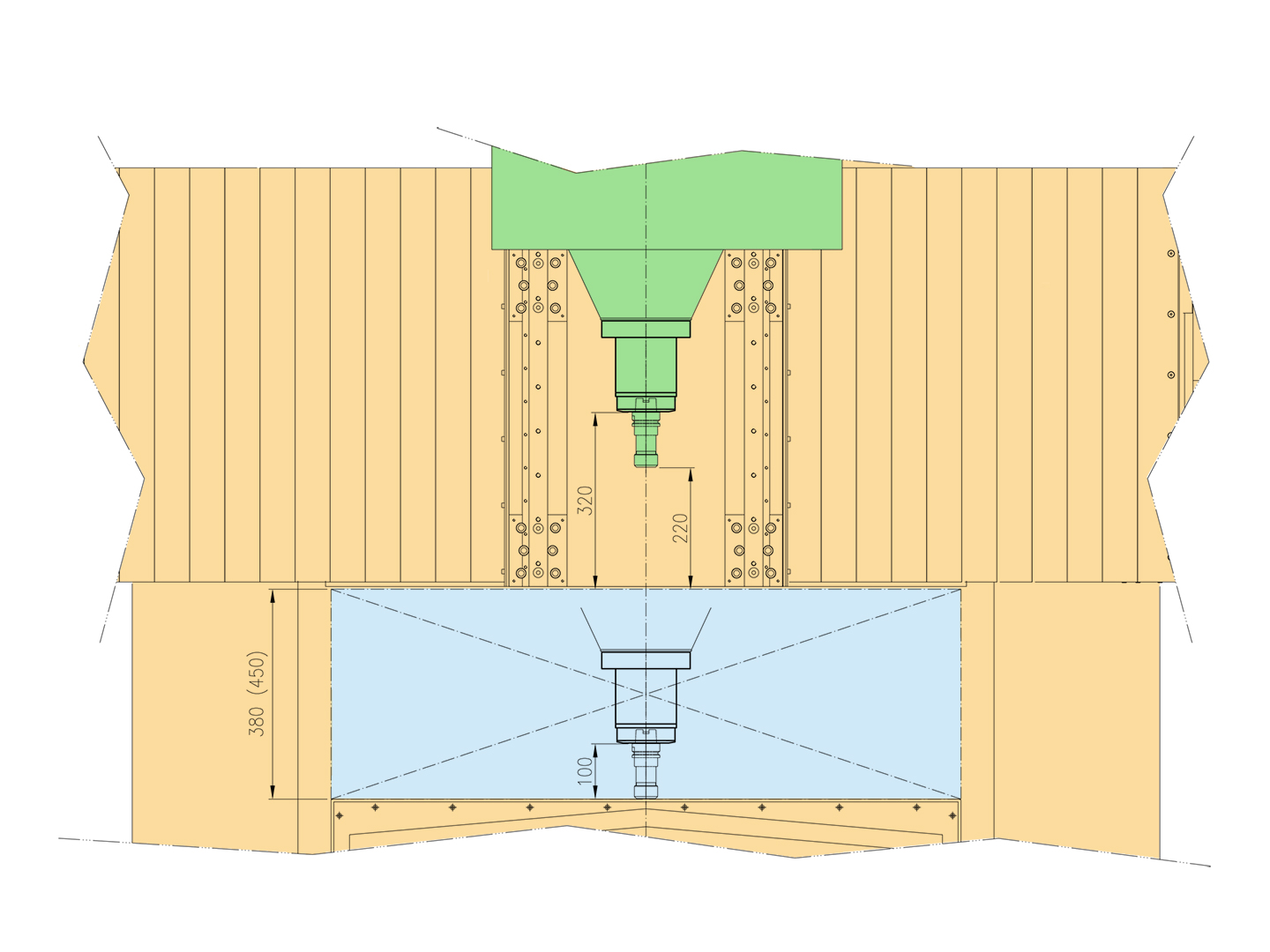

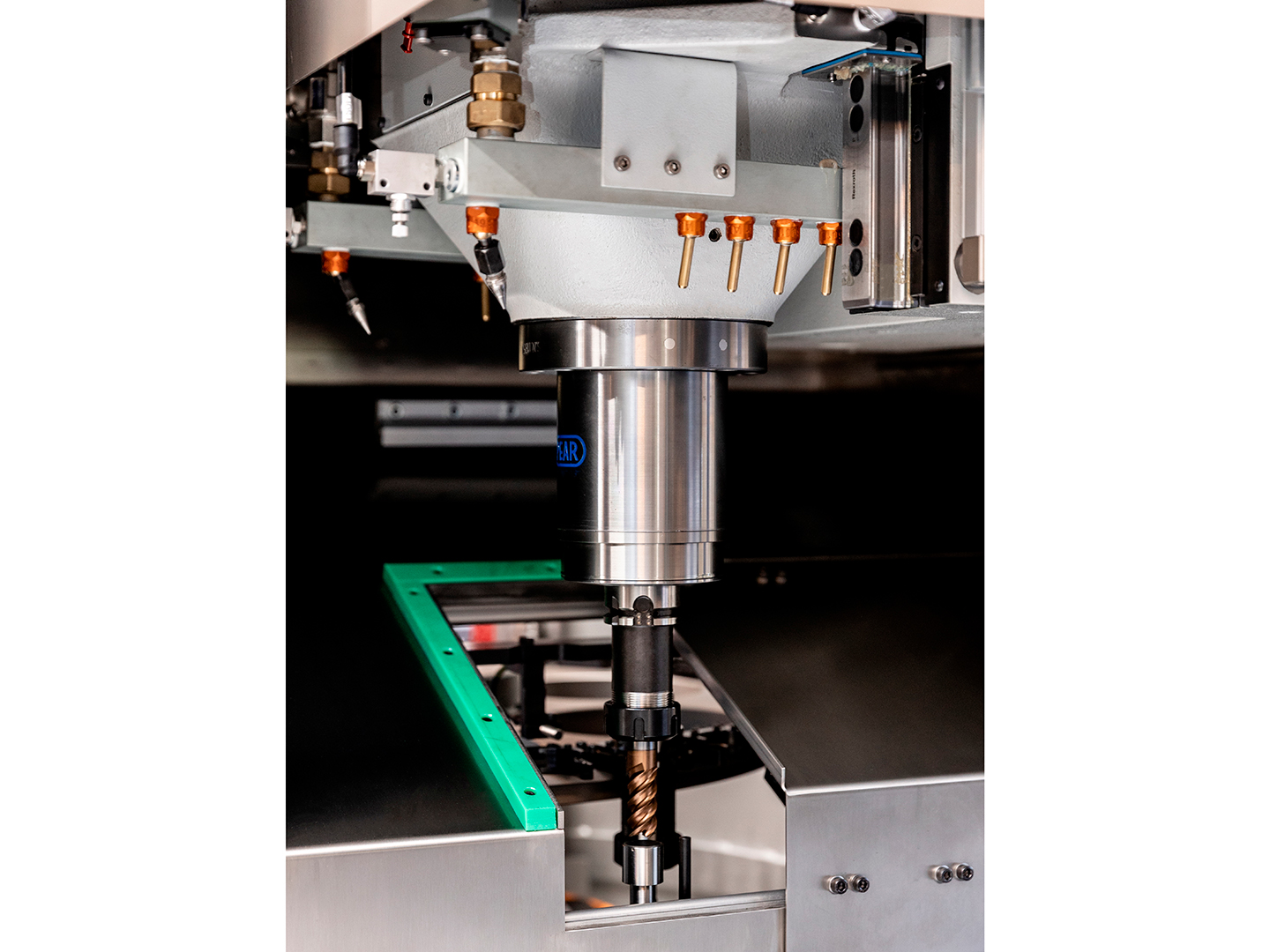

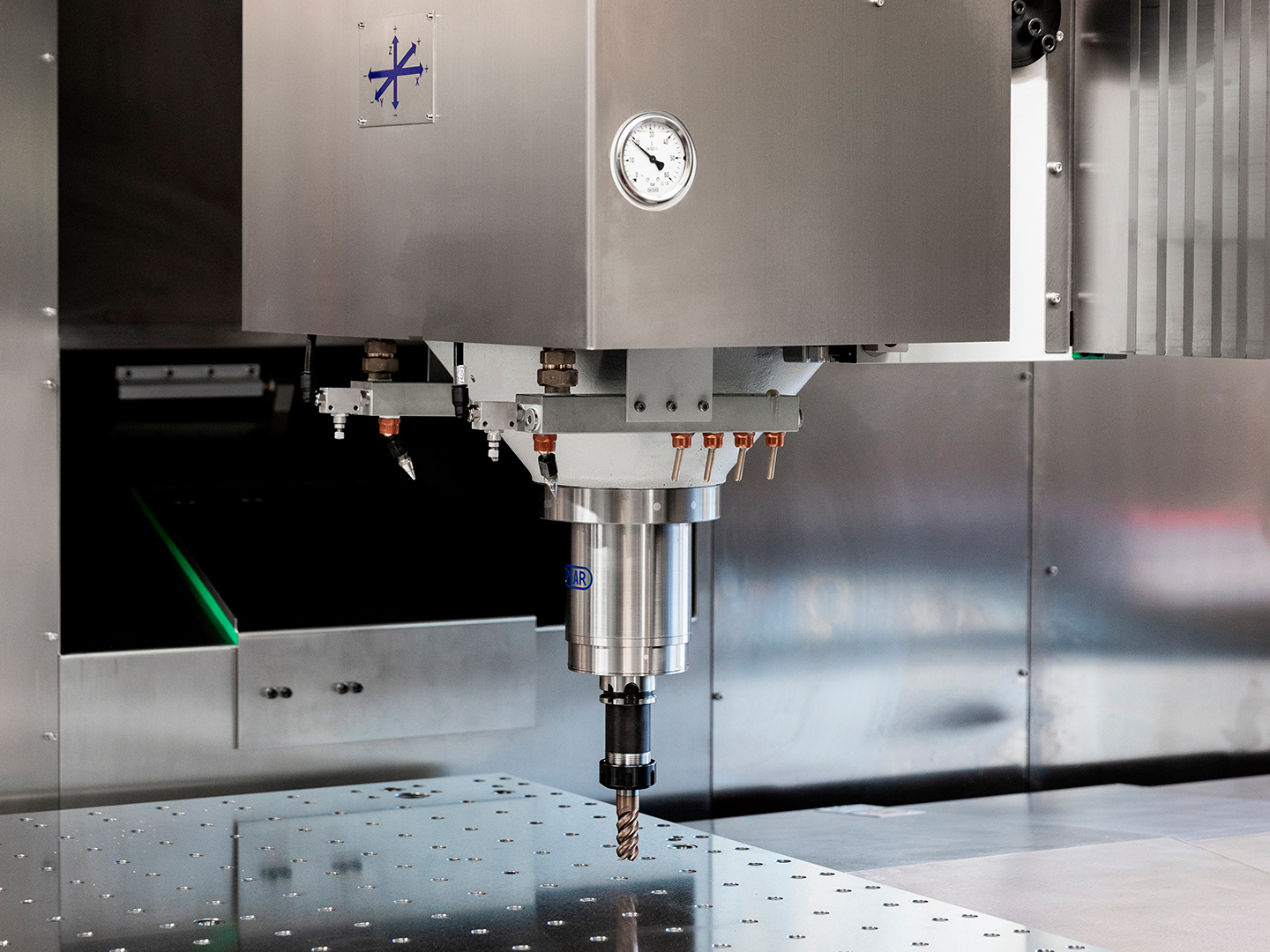

SPINDLE HSK50

Motor-spindle
Unlike what expected in the conventional construction of an electrospindle in which the rotor / stator are located within the spindle, in this case the spindle is a separate unit from the motor. The transmission of motion between the motor and the spindle is via a direct coupling of our own construction.

Read more

Last Updated on 14 March 2023 by Pear

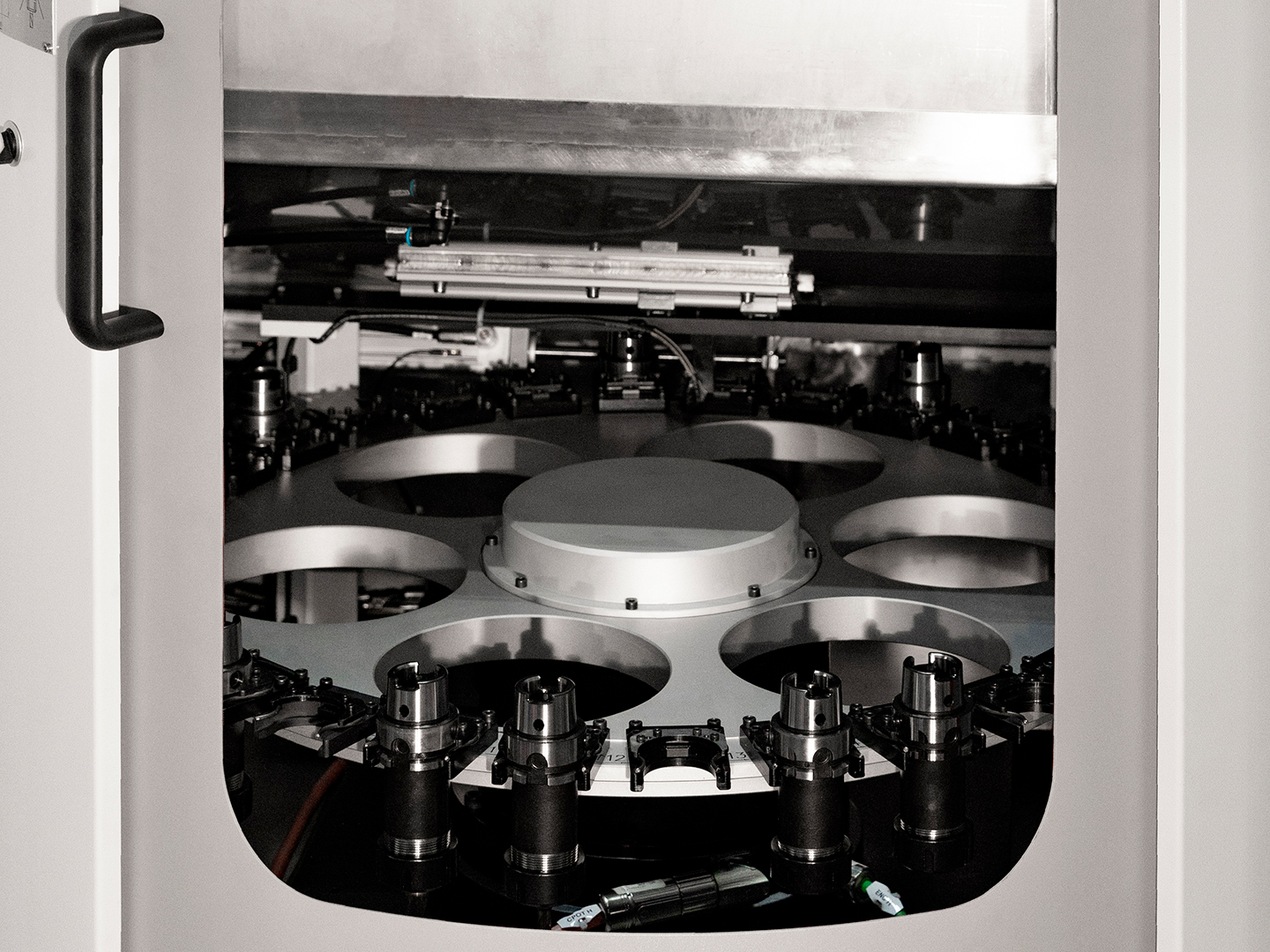

TOOL CHANGER

La soluzione utilizzata per la realizzazione del cambio utensile ha previsto che il deposito/prelievo degli utensili avvenga in una zona totalmente esterna all’area di lavoro macchina.

Read more

Last Updated on 14 March 2023 by Pear

CONTROL DESK

Unlike of what done in most machining centres, it is built in a quite unconventional way.

Read more

It is separated from the machine and this to so that should not be affected negatively by the vibrations generated by the normal use of a numerical control machine. You can program the machine is in a sitting position that standing.

We follow the philosophy of using two Pc IE:

Pc used as a Numerical Control
• Operating System Florenz (derived from Linux)
• RAM Installed Size 4 GB
• Dual Core Processor
• Solid state hard drive (SSD) having a capacity of 30 GB. On this Pc must be installed only the software of Cn. This data storage capacity is thus largely sufficient for all requirements of current and future data storage, even taking into account the natural evolution of Cn software and Linux will have in the coming years.

Programming Pc
• Operating system Windows 8.1 64-bit
• RAM Installed Size 4 GB (expandable to 32GB)
• Dual Core processor with integrated GPU
• Hard disk solid state drive (SSD) 240GB
• Monitor 22″ having a resolution of 1680×1050 pixels
• If considered appropriate, it is possible to install on this Pc any other program provided that is compatible with Windows

Selected Hardware
Both Pc are assembled directly by us and this in order to select the components of the best quality on the market and to have, thanks to the presence of a heat exchanger air/air, the maximum reliability in the time.

PearKey
• Sulla pulsantiera macchina è stata prevista una porta USB su cui inserire una chiavetta, normalmente reperibile in commercio, con cui determinare a quali programmi l’operatore a cui è stata assegnata tale chiavetta ha diritto ad avere accesso.
• Una singola chiavetta può personalizzare l’accesso ai programmi di macchine diverse e per ogni macchina possono essere determinati programmi diversi a cui tale operatore ha la possibilità di avere accesso.
• Se ritenuto utile su tale chiavetta possono essere memorizzati anche altri dati.

Last Updated on 14 March 2023 by Pear

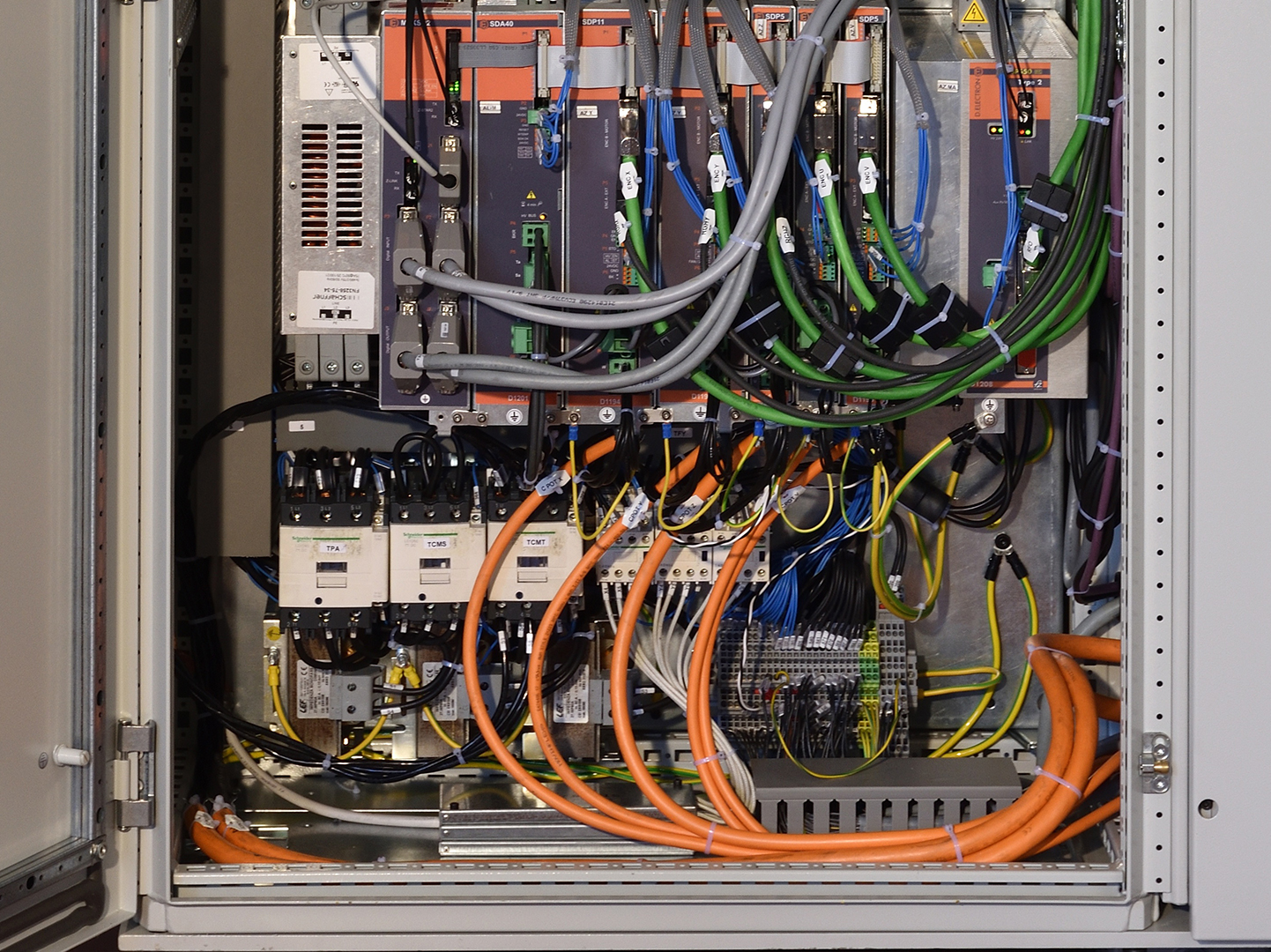

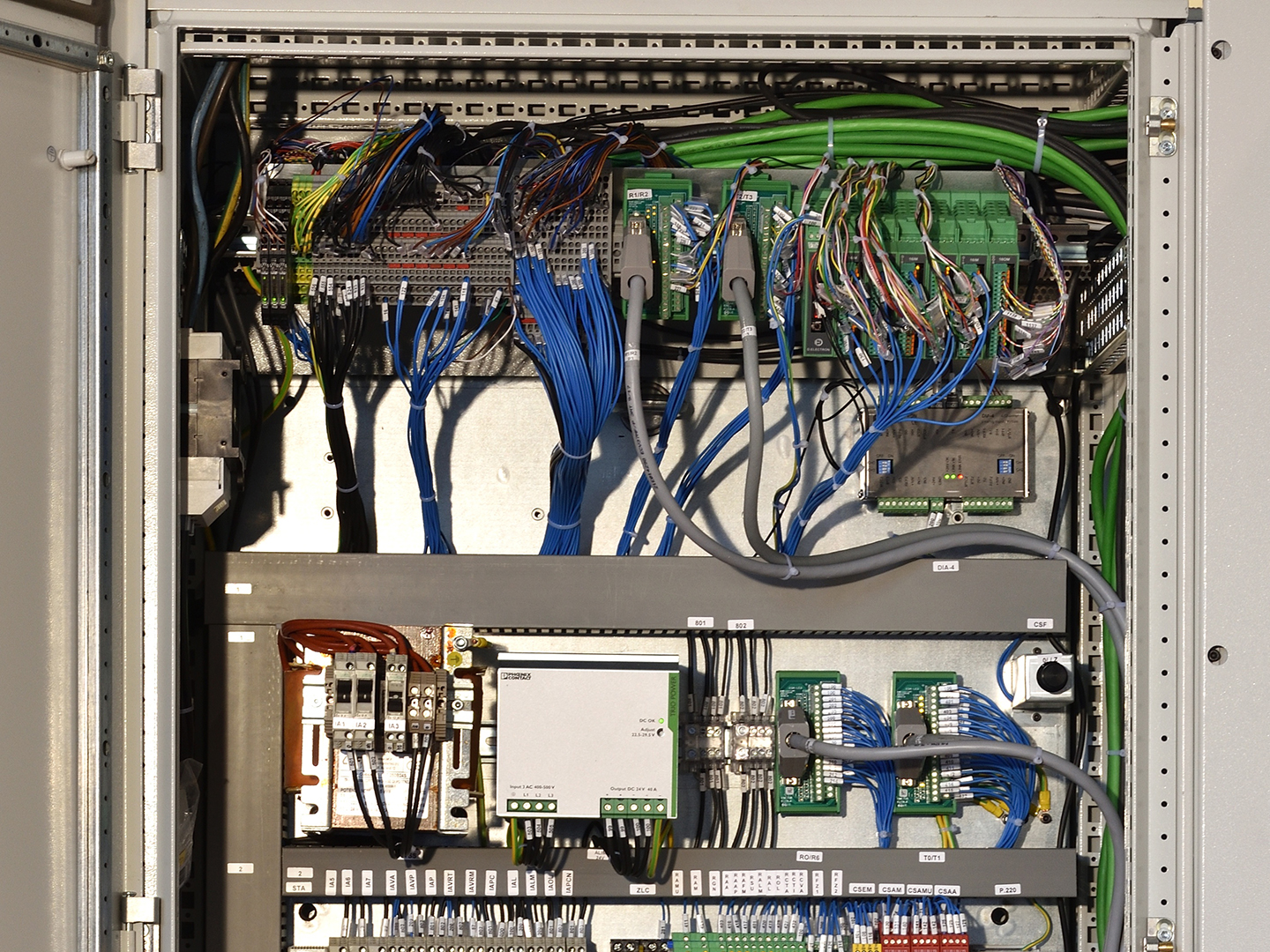

Z32 CN

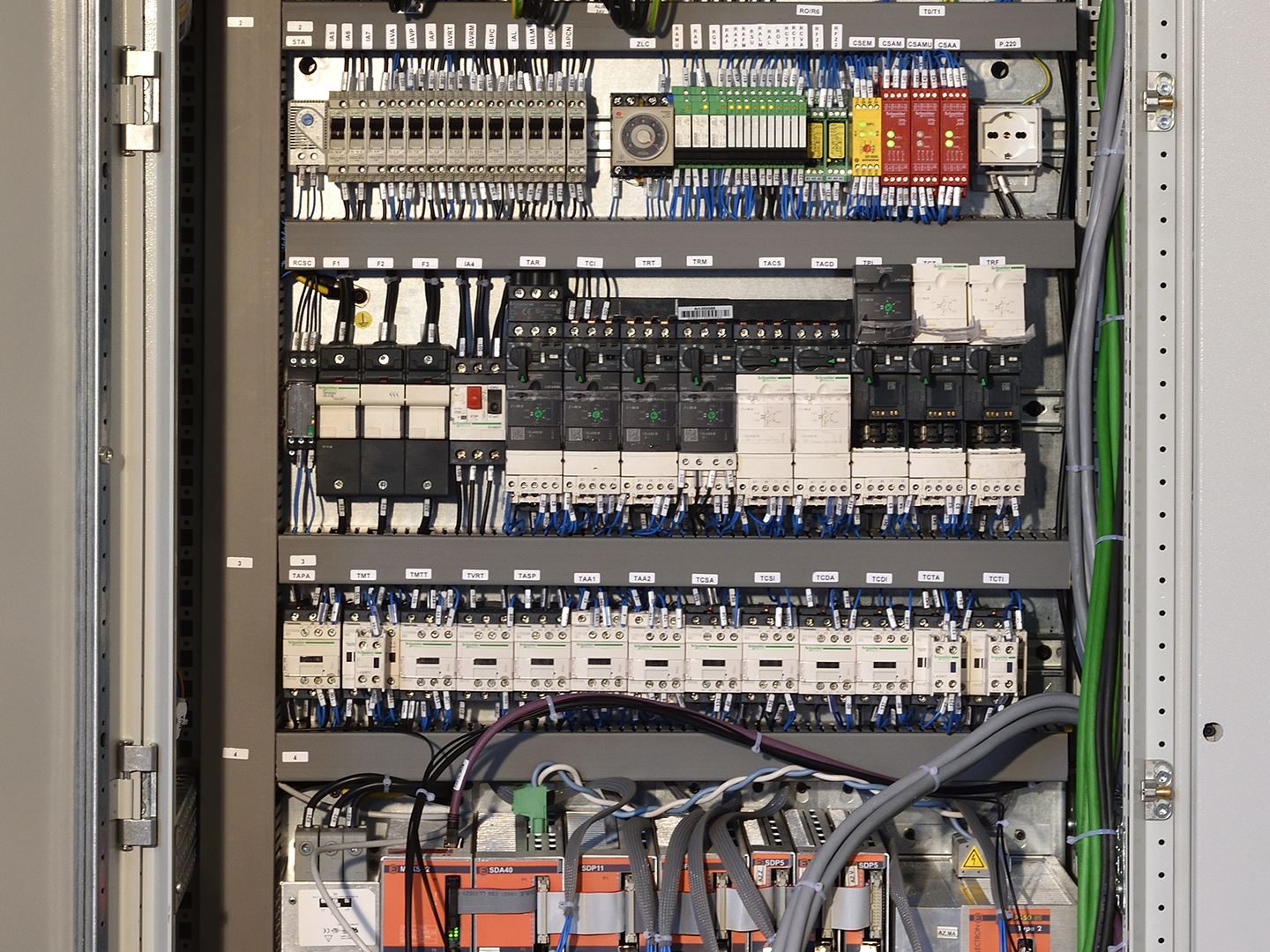

NC Hardware
Built on basic PCs, it is transformed into numerical control thanks to the presence of the Master Link board that is housed inside the control cabinet and manage the axes at the top of the high-speed performance.

Read more

Last Updated on 14 March 2023 by Pear

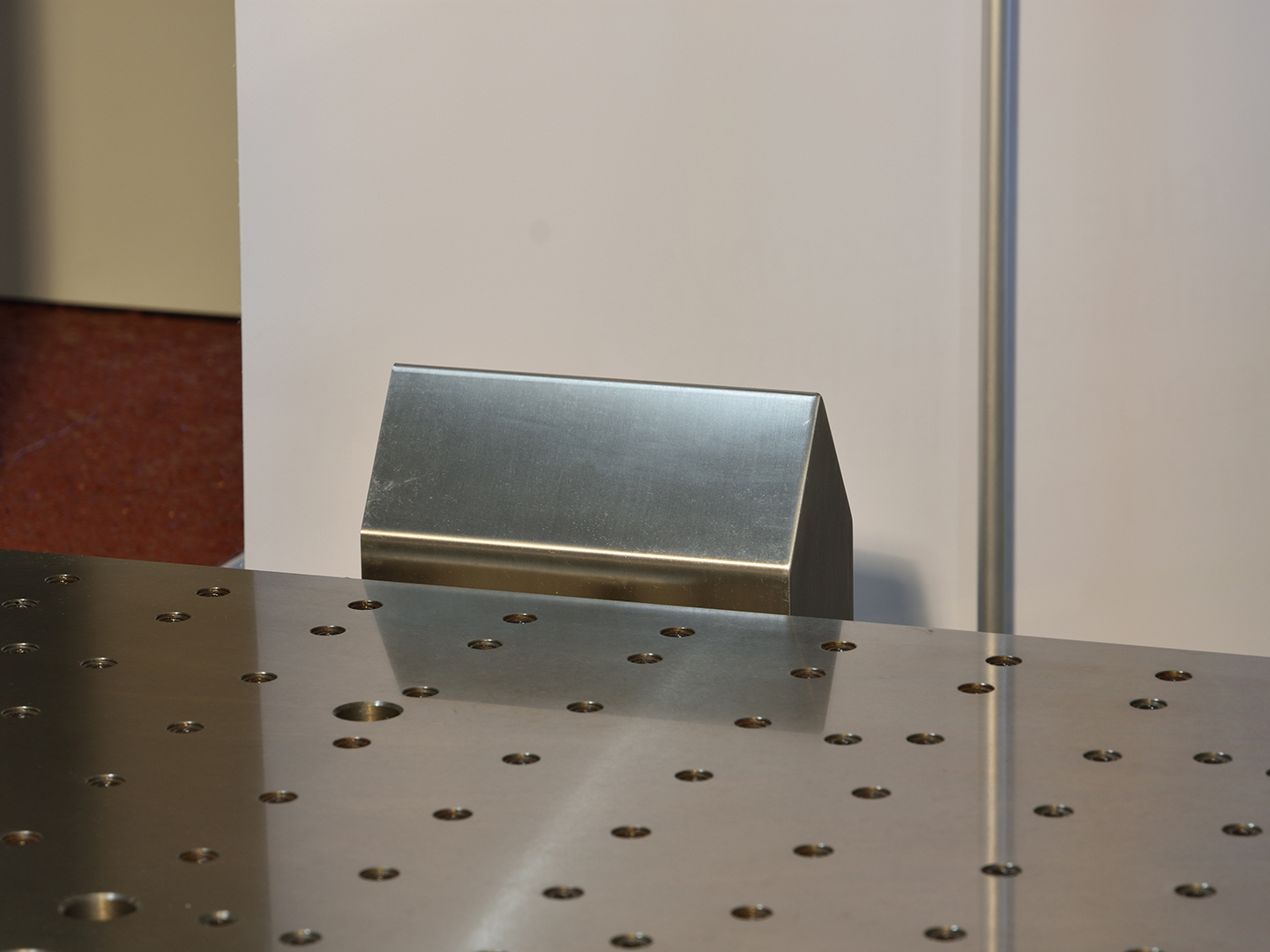

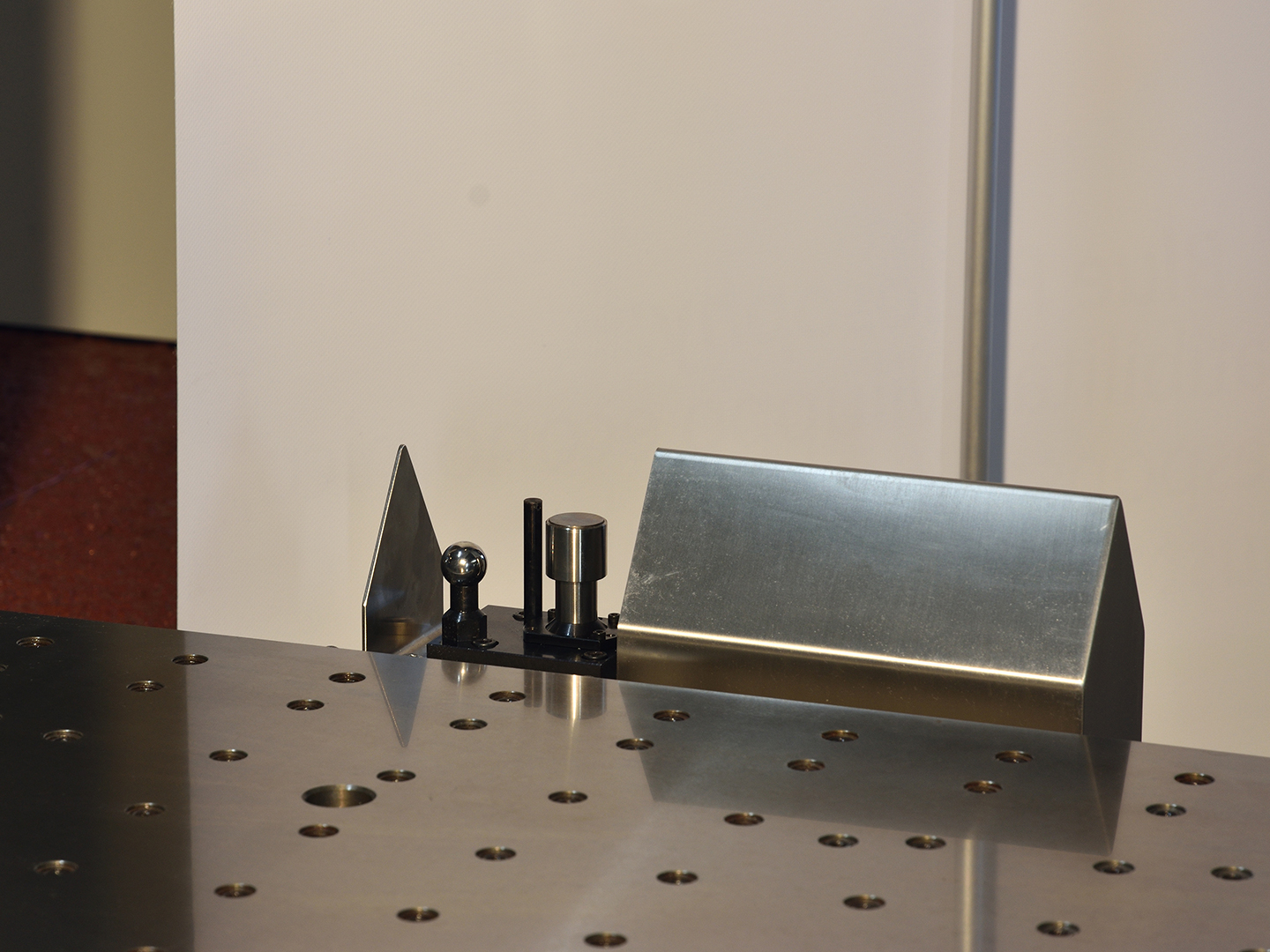

MEASURING PROBE PRESET

Purpose of the measurement probe

a) To store the values of a new origin. For this purpose, within our soft Peace are present measuring cycles which store in an automatic way the reference origin of the machining to be performed.

b) To check that the work has been well performed. This kind of performance is not achievable with our software Peace, but with the use of a program developed by third parties.

c) In the usual web page where you can download the file .pdf that illustrates these probes, you can also download a catalog created by Hexagon Metrology which explains in full this kind of performance.

Last Updated on 14 March 2023 by Pear

MAIN OPTIONS

Molto vasto è l’elenco degli accessori fornibili a richiesta. Gran parte degli accessori sono fornibili solo in prima fornitura quindi fate attenzione a farvi fare un’offerta con tutte le voci di vostro potenziale interesse in modo tale da configurare la vostra macchine nel modo da voi ritenuto migliore.

Read more

Last Updated on 14 March 2023 by Pear

DOWNLOAD

Le foto contenute nei vari file che è possibile scaricare da questa pagina web, sono state salvate in bassa risoluzione e questo per per rendere il download veloce e pratico.

Read more
